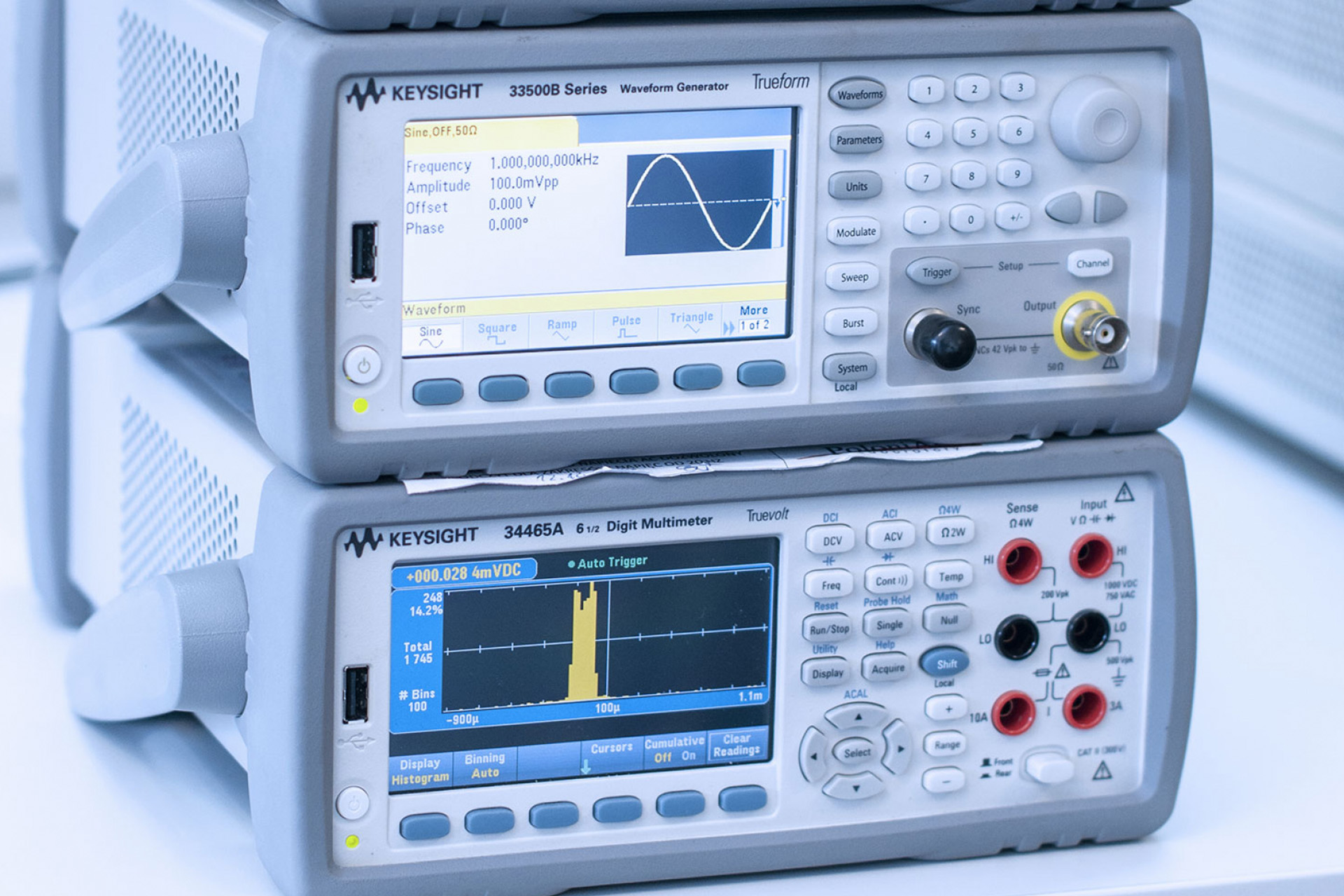

Polonia Aero provides also a high-quality calibration service. Calibration Department is equipped with a range of high accuracy multifunction calibrators and multimeters.  We can calibrate voltage and current reference sources (e.g. a variety range of DC/AC Gauges, National Instrument PXI boards etc.).

    Voltage DC

    Calibration object
    Measurement range
    Measurement uncertainty for CMC
    Place of performance
    Measurement method
    Digital voltage meters
    40 µV ÷ 200 mV
    200 mV ÷ 1 V
    (1 ÷ 10) V
    (1 ÷ 21) V
    17 µV
    0,05 mV
    0,0004 V
    0,0007 V
    S-stationary
    +
    P - at the customer site
    DK-M-02
    (according to EURAMET cg-15, version 3.0, 02/2015)
    Calibrators reference sources
    1 mV ÷ 1 V
    (1 ÷ 10) V
    (10 ÷ 20) V
    0,09 mV
    0,0007 V
    0,0015 V
    S-stationary
    +
    P - at the customer site
    DK-M-02
    (according to EURAMET cg-15, version 3.0, 02/2015)

    Current DC

    Calibration object
    Measurement range
    Measurement uncertainty for CMC
    Place of performance
    Measurement method
    Digital current meters
    10 µA ÷ 5 mA
    (5 ÷ 10) mA
    (10 ÷ 20) mA
    2 µA
    0,004 mA
    0,007 mA
    S-stationary
    +
    P - at the customer site
    DK-M-02
    (according to EURAMET cg-15, version 3.0, 02/2015)
    Calibrators reference sources
    10 µA ÷ 6 mA
    (6 ÷ 10) mA
    (10 ÷ 24) mA
    6 µA
    0,008 mA
    0,017 mA
    S-stationary
    +
    P - at the customer site
    DK-M-02
    (according to EURAMET cg-15, version 3.0, 02/2015)

    Voltage AC

    Calibration object
    Measurement range
    Measurement uncertainty for CMC
    Place of performance
    Measurement method
    Digital current meters
    20 Hz ÷ 100 kHz

     (1 ÷ 10) mV
    (10 ÷ 500) mV
    (500 ÷ 1000) mV

    (1000 ÷ 2000) mV

    (2 ÷ 5) V
    (5 ÷ 10) V
    (10 ÷ 20) V
    0,08 mV
    1,3 mV
    2 mV

    4 mV

    0,01 V
    0,02 V
    0,04 V
    S-stationary
    +
    P - at the customer site
    DK-M-02
    (according to EURAMET cg-15, version 3.0, 02/2015)

    Differential Pressure

    Calibration object
    Measurement range
    Measurement uncertainty for CMC
    Place of performance
    Measurement method
    Electronic pressure gauges
    (-55 ÷ 689,5) kPa
    0,094 kPa
    S-stationary
    +
    P - at the customer site
    DKD-R 6-1
    edition 03/2014
